產品參數

基本描述

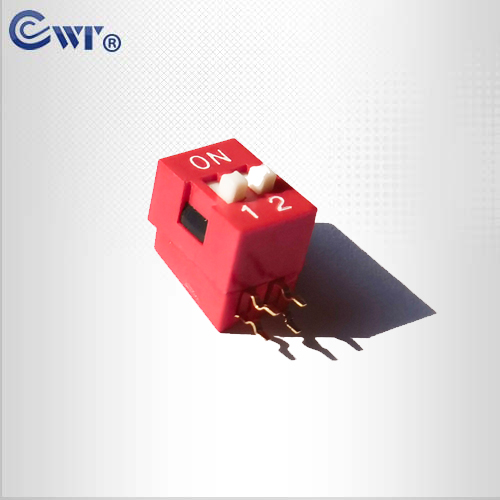

產品型號:WT11-DA (直角型)定制

位數:2

顏色選擇:紅色

包裝:IC管形式包裝

機械性能   MECHANICAL

操作力:800g Max.

Operation Force:800g Max

推扭行程:0.9mm   Stroke:0.90mm

使用溫度:-20攝氏度 ~+70攝氏度

Operation Temp:-20℃~+70℃

儲存溫度:-40攝氏度 ~+85攝氏度

Storage Temp:-40℃ to 85℃℃

材料 MATERIALS

底座:工程塑料，黑色

Base: Engineering Plastics,Black

上蓋:工程塑料，黑色、紅色、藍色

Cover: Engineering Plastics,Black

推鈕:工程塑料，白色

Button: Engineering Plastics,White

端子:合金銅鍍金

TERMINAL: Alloy Copper,Gold plating

電器性能 ELECTRICAL

電器壽命:在電壓24VDC與電流25mA之下測試，可來回撥動2000次

Electrical Life: 2000 operations cycles per switch

開關不經常切換的額定電流:100mA，耐壓24VDC

Non-Switching Rating:100mA,50VDC

開關經常切換的額定電流:25mA，耐壓24VDC

Switching rating:25mA,24VDC

接觸阻抗:初始值最大值50mΩ;測試后最大值100m Ω

Contactresistance: 50mQ max.at initial:100mΩ max.after life test

絕緣阻抗:最小100mΩ，500VDC

Insulation Resistance:100MQ,500VDC

耐壓強度:500VAC/分鐘

Dielectrice Strength: 500VAC/1 minute

極際電容:最大5pF

Capacitance:5pF max

回路:單接點單選擇

Circuit: Single Pole single throw

焊接和清洗過程 SOLDERING AND CLEANING PROCESSES

在所有操作過程中，請確保開關“off”位置

Keepall switch contacts in their "OFF" position forall operations

波峰焊:推薦焊錫溫度在260攝氏度，最多5秒鐘

Wave slodering: Rencommended Solder Temperature at 260℃ max. 5 seconds for IC type

手工焊:使用30瓦洛鐵控制溫度在320攝氏度，焊接時間大約2秒鐘

Hand Soidering:Use a soldering iron of 30 watts,controlled at320° approx.2 sec.while applying solder.

清洗過程:清洗使用超音波方式，能給予更好效果;使用蒸汽清洗時，

溫度不可超多51攝氏度。

CleaningProcess:Fluxclean using force rinse,high agitation or triple bath cleaning method.Freon TF orTE give excellent

results. When vapormethods are used do not subject the switch to solvents at temperature above 51℃.
