點擊查看規格書
此款推鈕高低可選 低鈕可貼膜
產品參數
基本描述

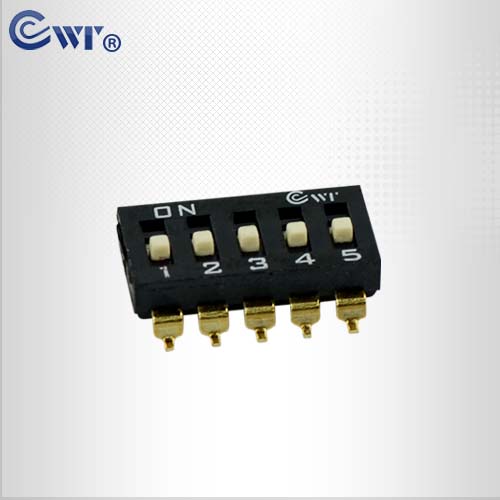

產品型號:WT11-SMD (貼片型)
位數:5
顏色選擇: 黑色
包裝:IC管形式包裝 34只/管
機械性能 MECHANICAL
操作力:800g Max.
Operation Force:800g Max
推扭行程:0.9mm Stroke:0.90mm
使用溫度:-20攝氏度 ~+70攝氏度
Operation Temp:-20℃~+70℃
儲存溫度:-40攝氏度 ~+85攝氏度
Storage Temp:-40℃ to 85℃℃
材料 MATERIALS
底座:工程塑料，黑色
Base: Engineering Plastics,Black
上蓋:工程塑料，黑色、紅色、藍色
Cover: Engineering Plastics,Black
推鈕:工程塑料，白色
Button: Engineering Plastics,White
端子:合金銅鍍金
TERMINAL: Alloy Copper,Gold plating
電器性能 ELECTRICAL
電器壽命:在電壓24VDC與電流25mA之下測試，可來回撥動2000次
Electrical Life: 2000 operations cycles per switch
開關不經常切換的額定電流:100mA，耐壓24VDC
Non-Switching Rating:100mA,50VDC
開關經常切換的額定電流:25mA，耐壓24VDC
Switching rating:25mA,24VDC
接觸阻抗:初始值最大值50mΩ;測試后最大值100m Ω
Contactresistance: 50mQ max.at initial:100mΩ max.after life test
絕緣阻抗:最小100mΩ，500VDC
Insulation Resistance:100MQ,500VDC
耐壓強度:500VAC/分鐘
Dielectrice Strength: 500VAC/1 minute
極際電容:最大5pF
Capacitance:5pF max
回路:單接點單選擇
Circuit: Single Pole single throw
焊接和清洗過程 SOLDERING AND CLEANING PROCESSES
在所有操作過程中，請確保開關“off”位置
Keepall switch contacts in their "OFF" position forall operations
波峰焊:推薦焊錫溫度在260攝氏度，最多5秒鐘
Wave slodering: Rencommended Solder Temperature at 260℃ max. 5 seconds for IC type
手工焊:使用30瓦洛鐵控制溫度在320攝氏度，焊接時間大約2秒鐘
Hand Soidering:Use a soldering iron of 30 watts,controlled at320° approx.2 sec.while applying solder.
回流焊:(貼片型)回流爐最高溫度為260℃;溫度為240℃時,最長時間不超過20秒。(如圖)
Reflow Soldering: Reflow zone 240℃ for 20 seconds. (attached drawing for reference)
清洗過程:清洗使用超音波方式，能給予更好效果;使用蒸汽清洗時，
溫度不可超多51攝氏度。
CleaningProcess:Fluxclean using force rinse,high agitation or triple bath cleaning method.Freon TF orTE give excellent
results. When vapormethods are used do not subject the switch to solvents at temperature above 51℃.
