MECHANICAL DATA
Expected life:10000 steps

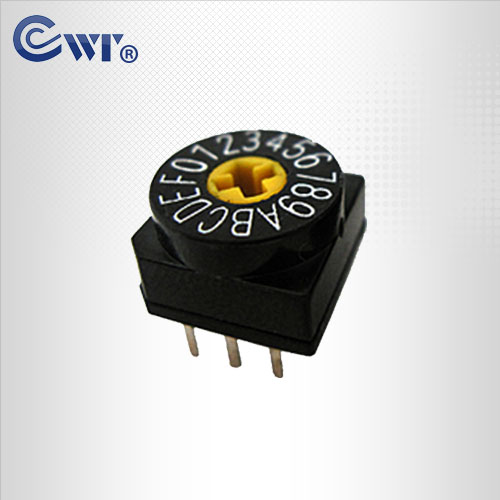

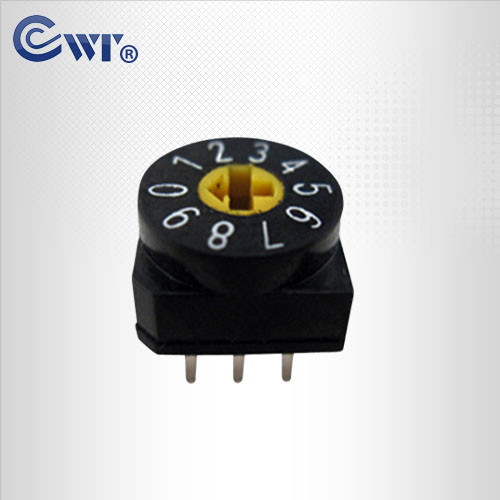

Postion per rotation:10,16
Operating temperature:-20Cto +70℃℃
MATERIALS
Base:engineering plastics
Cover:engineering plastics
Actuator:engineering plastics
Contacts: alloy copper,gold over nickel plated
Terminals:alloy copper,tin plated
ELECTRICAL SPECIFICATIONS
Operating voltage: 24 VCD max
Contactload,static:400mA max
Contact load,dynamic:400mA max
Initial contact resistance:80mΩ max
Insulation resistance:100MΩ min
SOLDER RECOMMENDATIONS
Hand soldering: 340°C max.for 2 seconds max
Wave slodering:260°C max.for 10 seconds max
PACKING
Switches are shipped in standard IC Tube Package,
and it is 45 pcs per tube.and the accessories is bags
CODES/TRUTH TABLES
